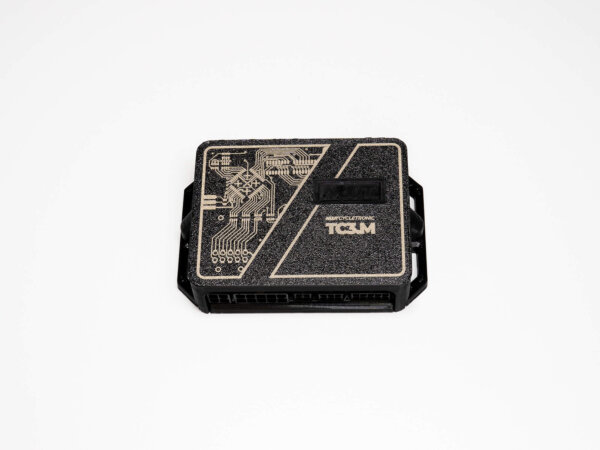

TC3.M
$234.50
Multiplex Control System for your DIY or self-supplied aftermarket handlebar switches.
Only has the necessary features from the X3 Control Hubs but still have everything you need for a fully functional and efficient electrical wiring. Same difference like the X3, is your choice of handlebar switchgear option:
Go to our Downloads section for PDF Install Guides and common install setups.

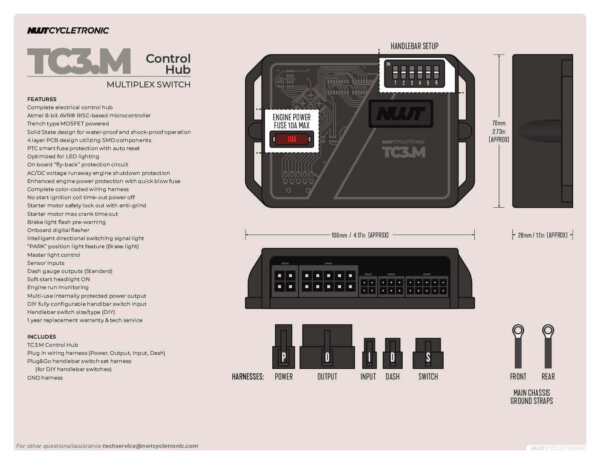

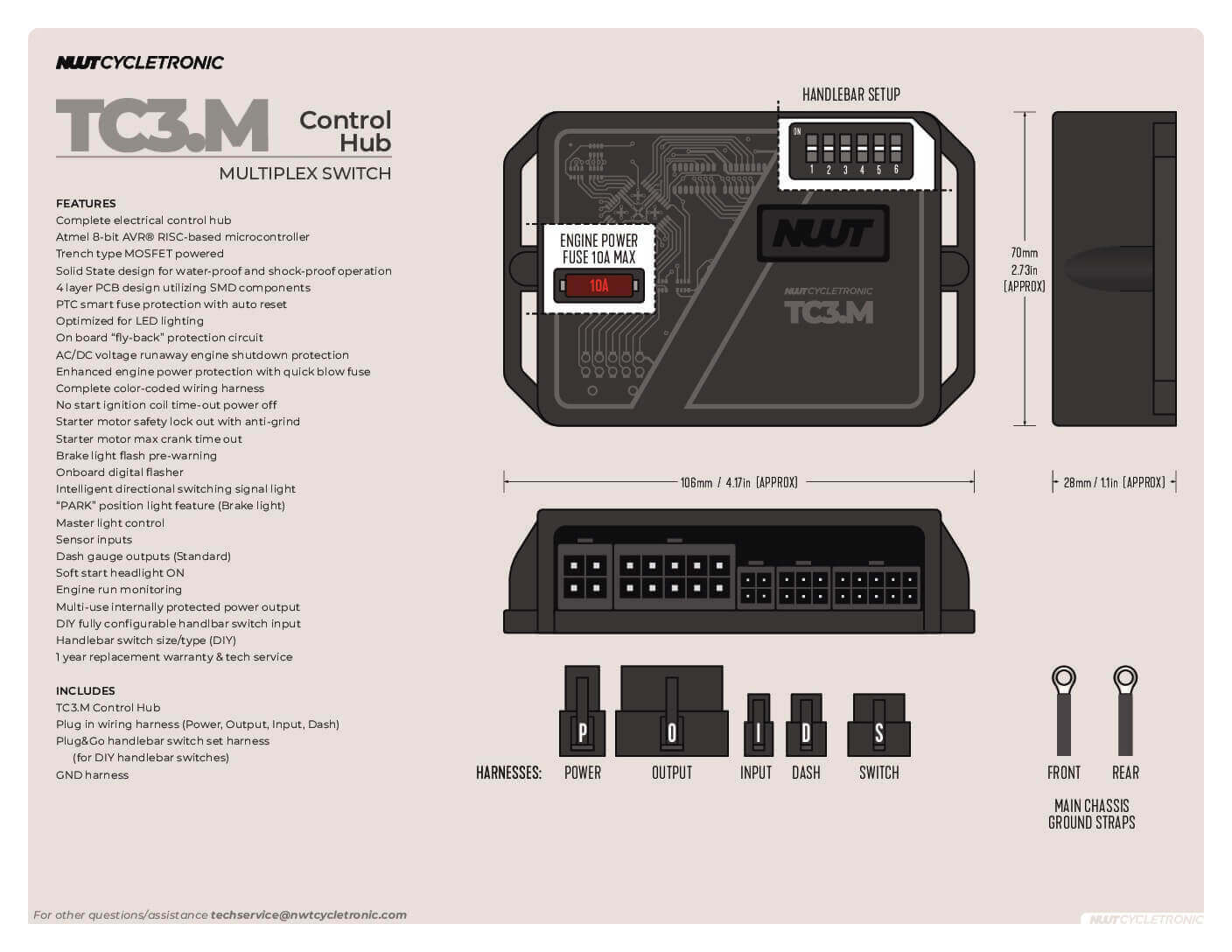

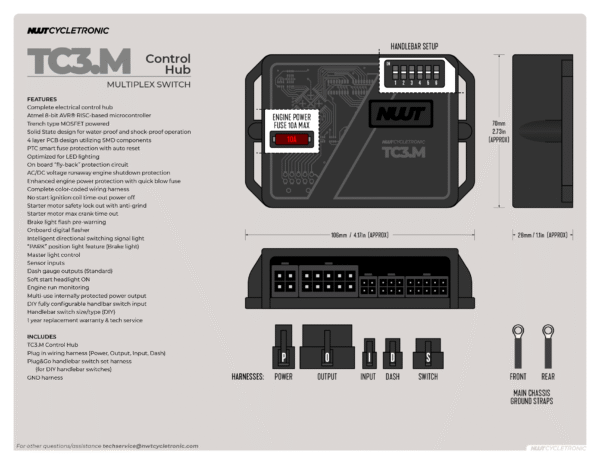

TC3.M CONTROL SYSTEM

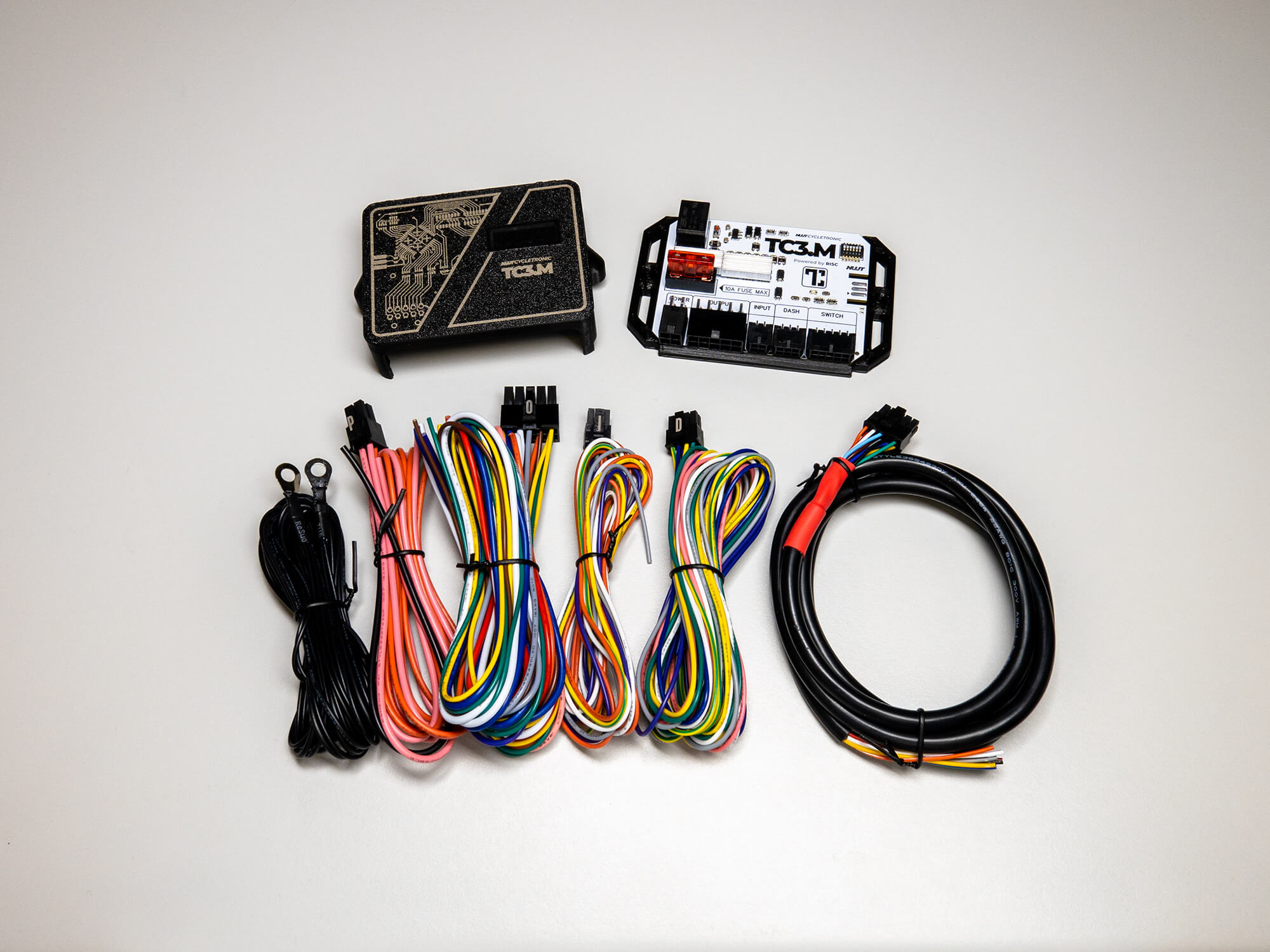

- Complete electrical control hub + wiring harness
- Atmel 8-bit AVR® RISC-based microcontroller
- Trench type MOSFET powered
- Solid State design for water-proof and shock-proof operation

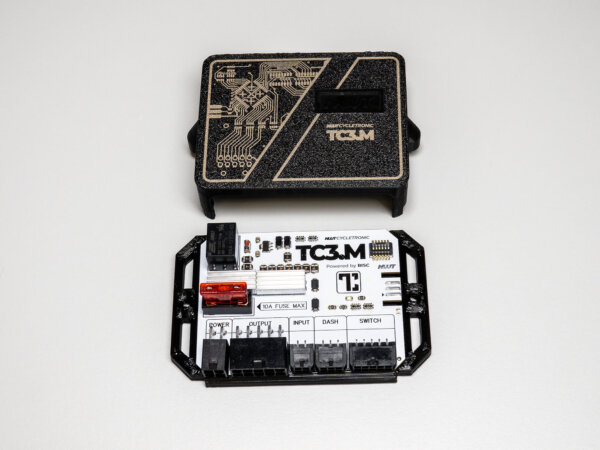

- 4 layer PCB design utilizing SMD components
- PTC smart fuse protection with auto reset
- Optimized for LED lighting
- On board “fly-back” protection circuit
- AC/DC voltage runaway engine shutdown protection
- Enhanced engine power protection with quick blow fuse

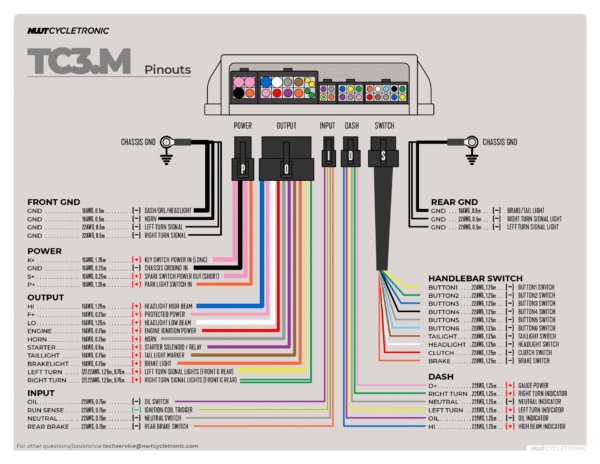

- Complete color-coded wiring harness
- No start ignition coil time-out power off
- Starter motor safety lock out with anti-grind
- Starter motor max crank time out
- Brake light flash pre-warning
- Onboard digital flasher
- Intelligent directional switching signal light
- “PARK” position light feature (Brake light)
- Master light control
- Sensor inputs
- Dash gauge outputs (Standard)
- Soft start headlight ON
- Engine run monitoring
- Multi-use internally protected power output
- Handlebar switch harness only
- DIY fully configurable handlebar switch input
- Handlebar switch size/type (DIY)
- 1 year replacement warranty & tech service
