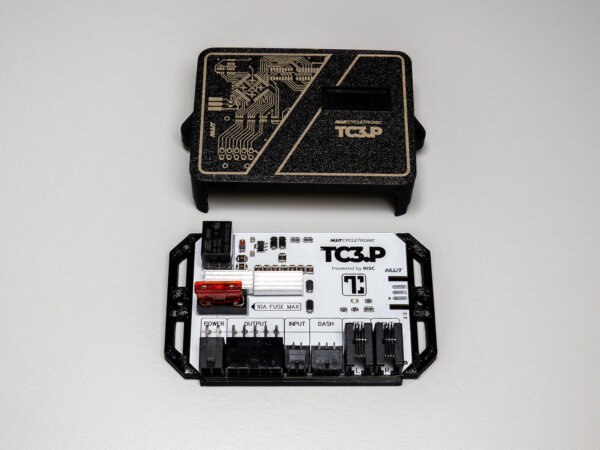

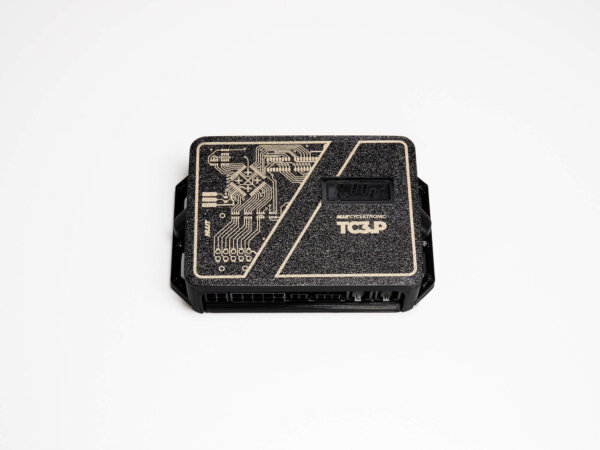

TC3.P
$274.50

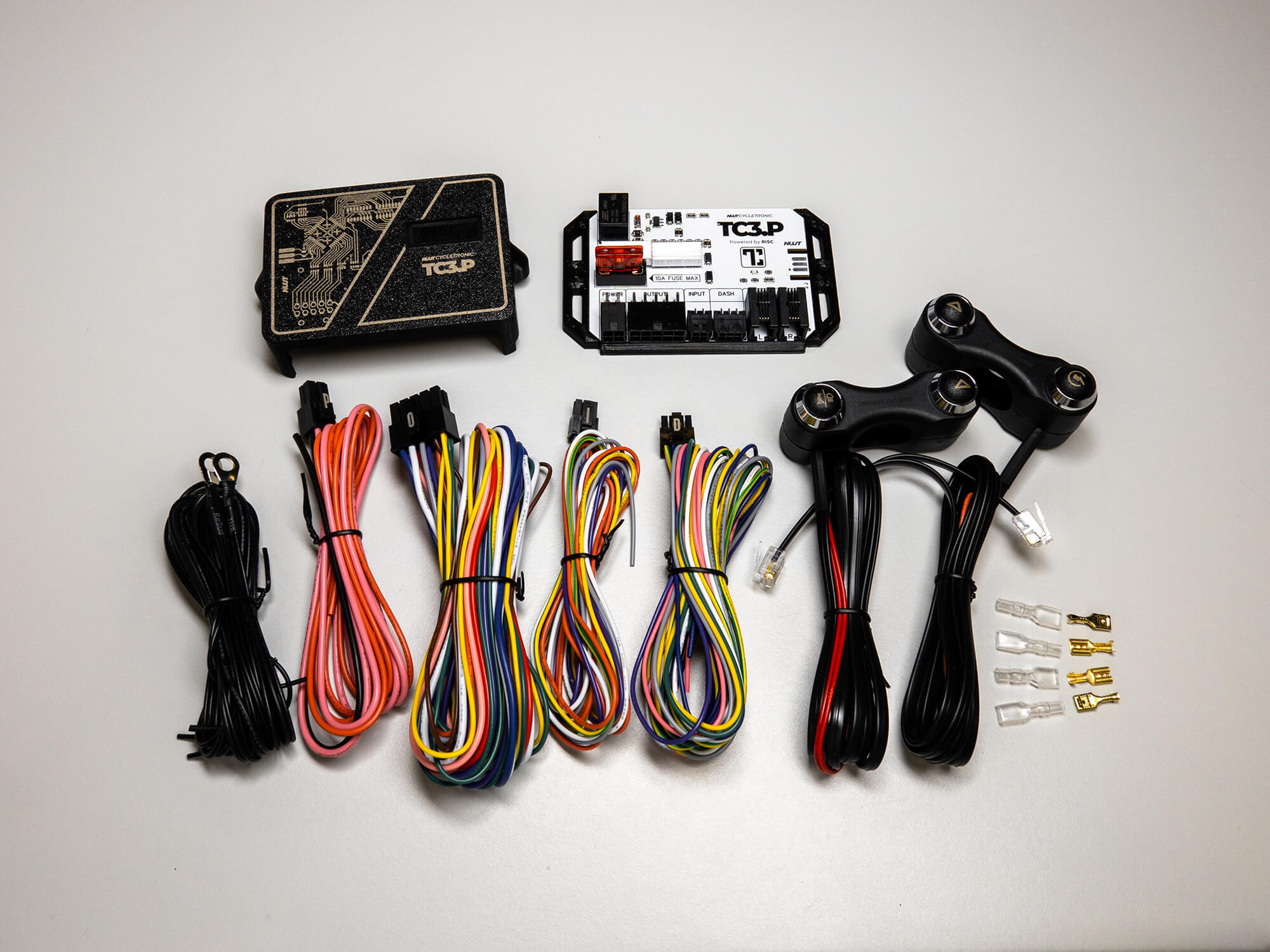

Comes with all Push-button handlebar controls and harness
Only has the necessary features from the X3 Control Hubs but still have everything you need for a fully functional and efficient electrical wiring. Same difference like the X3, is your choice of handlebar switchgear option:
- TC3.M – for Multiplex Switchgear (DIY, self-supplied)
- TC3.S – with Standard type Switchgear (factory style)
Go to our Downloads section for PDF Install Guides and common install setups.
X3.P CONTROL SYSTEM
- Complete electrical control hub + wiring harness
- Atmel 8-bit AVR® RISC-based microcontroller
- Trench type MOSFET powered
- Solid State design for water-proof and shock-proof operation
- 4 layer PCB design utilizing SMD components
- PTC smart fuse protection with auto reset
- Optimized for LED lighting
- On board “fly-back” protection circuit
- AC/DC voltage runaway engine shutdown protection
- Charging system monitoring with fault audible notification
- Enhanced engine power protection with quick blow fuse
- Complete color-coded wiring harness
- No start ignition coil time-out power off
- Starter motor safety lock out with anti-grind
- Starter motor max crank time out
- Brake light flash pre-warning (Selectable)
- Automatic brake light HOLD (Selectable)
- Onboard digital flasher (Selectable)
- Intelligent directional switching signal light
- Signal light time out auto off
- DRL/Halo/Front Marker light output with TYPE 2 switchback (Selectable)
- “PARK” position light feature (Hazard lights)
- Master light control (Headlight only)
- Sensor inputs
- Auxiliary sensor input/output
- Dash gauge outputs (Enhanced)
- Soft start headlight ON
- Engine run monitoring
- Multi-use internally protected power output
- Single wire PWM taillight output
- Sequential/self flashing signal light capable
- Plug&Go handlebar switch set (Push button type)
- Handlebar switch size (7/8″,22mm)
- 1 year replacement warranty & tech service
Go to our Downloads section for PDF Install Guides and common install setups.
