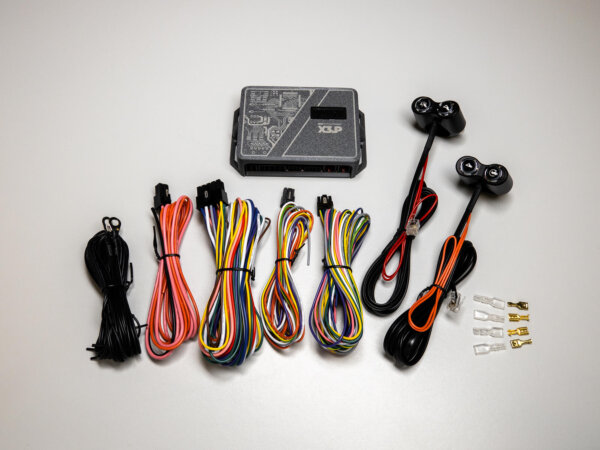

X3.HD

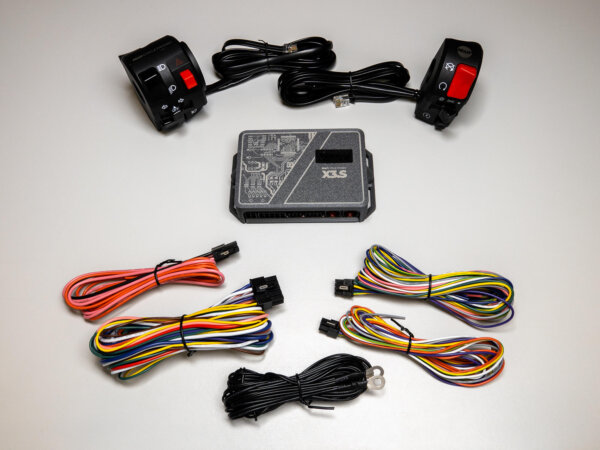

X3.S CONTROL SYSTEM

• Complete electrical control hub + harness
• Atmel 8-bit AVR® RISC-based microcontroller
• Trench type MOSFET powered
• Solid State design for water-proof and shock-proof operation
• 4 layer PCB design utilizing SMD components
• PTC smart fuse protection with auto reset
• Optimized for LED lighting
• On board “fly-back” protection circuit
• AC/DC voltage runaway engine shutdown protection
• Charging system monitoring with fault audible notification
• Enhanced engine power protection with quick blow fuse
• Complete color-coded wiring harness
• No start ignition coil time-out power off
• Starter motor safety lock out with anti-grind
• Starter motor max crank time out
• Brake light flash pre-warning (Selectable)
• Automatic brake light HOLD (Selectable)
• Onboard digital flasher (Selectable)
• Intelligent directional switching signal light
• Signal light time out auto off
• DRL/Halo/Front Marker light output with TYPE 2 switchback (Selectable)
• “PARK” position light feature (Hazard lights)
• Master light control
• Sensor inputs
• Auxiliary sensor input/output
• Dash gauge outputs (Enhanced)
• Soft start headlight ON
• Engine run monitoring
• Multi-use internally protected power output
• Single wire PWM taillight output
• Sequential/self flashing signal light capable
• Handlebar switch controls included (Standard/factory style)
• Handlebar switch size 7/8″(22mm)
• 1 year replacement warranty & tech service

Go to our Downloads section for PDF Install Guides and common install setups.
